French Drain Solutions for Effective Runoff in Shellharbour

Addressing Water Ingress Challenges in Shellharbour

A Shellharbour homeowner encountered a serious and worsening problem with water ingress. Rainwater from two neighbouring properties, located at a higher elevation, began to flow into the yard and seep beneath the foundation of the house. This unwelcome intrusion caused damage to the flooring, encouraged rising damp, and resulted in mould growth within the property, jeopardising the integrity of recent renovations.

How Can You Determine the Cause of Water Ingress?

The issue arose due to both surface runoff and subsurface water flowing downhill from the rear and side yards of adjacent properties. In the absence of a solid drainage system to intercept this influx, the water was forced to flow under the house.

Designing an Effective Drainage Solution

CS Plumbing crafted and implemented a gravity-fed French drain system, specifically engineered to capture and redirect water before it could reach the home's foundation.

The project comprised several vital components:

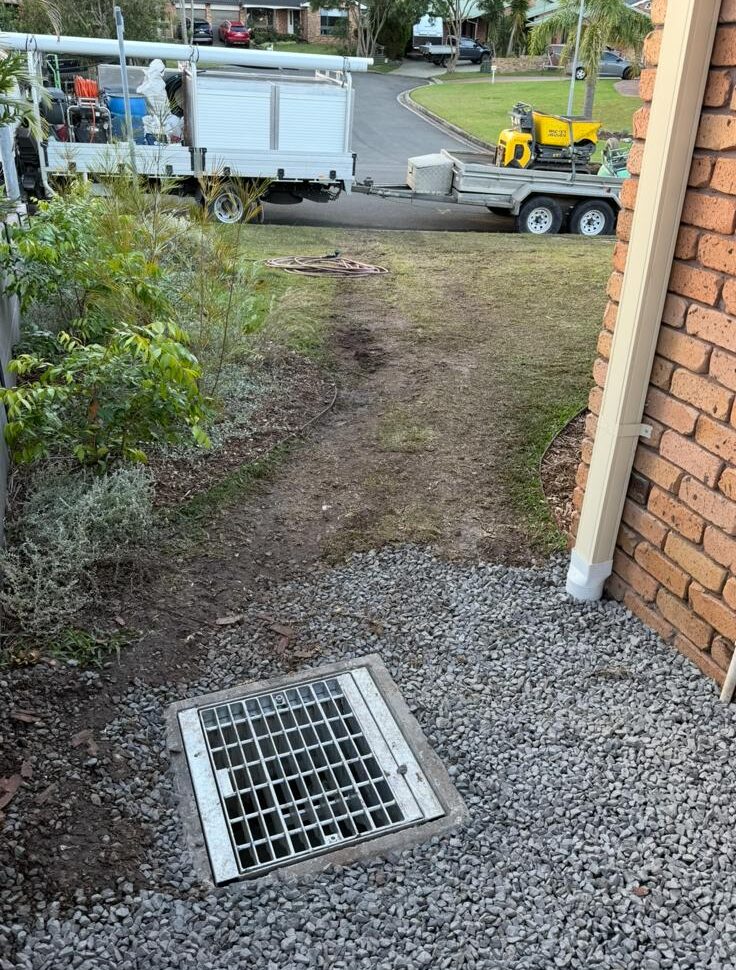

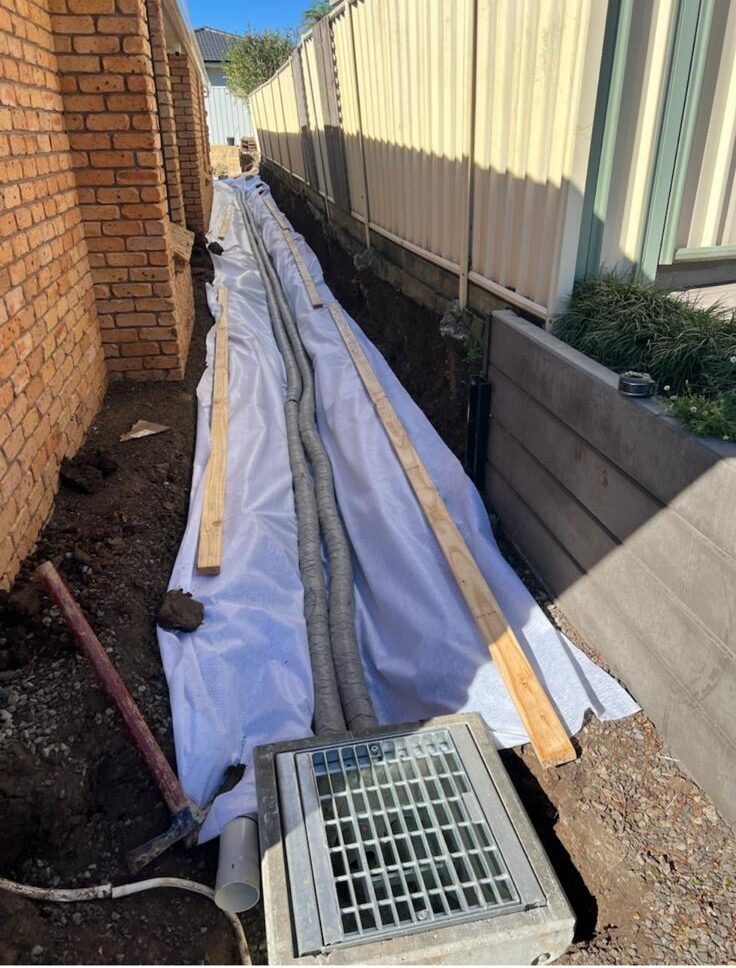

A carefully designed French drain system to collect surface and subsurface water from neighbouring properties, directing it through gravity to a concrete pit.
A 100mm PVC pipe extending from the pit to the curb, equipped with strategically drilled holes to ensure effective discharge.
Three new, larger-diameter Colorbond metal downpipes, replacing the original smaller pipes, connected to new 100mm PVC piping leading to the curb.
A retaining wall system constructed along the boundary, utilising concrete sleepers and galvanised steel posts, with auger holes drilled using an excavator to form a robust barrier against the adjacent yard.

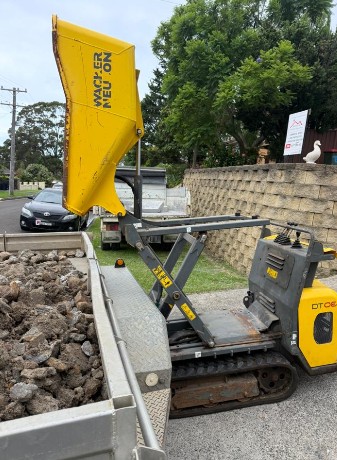

Efficient on-site soil removal, facilitated by a dumper for streamlined site management.

What Effective Strategies Can You Implement for Water Management?

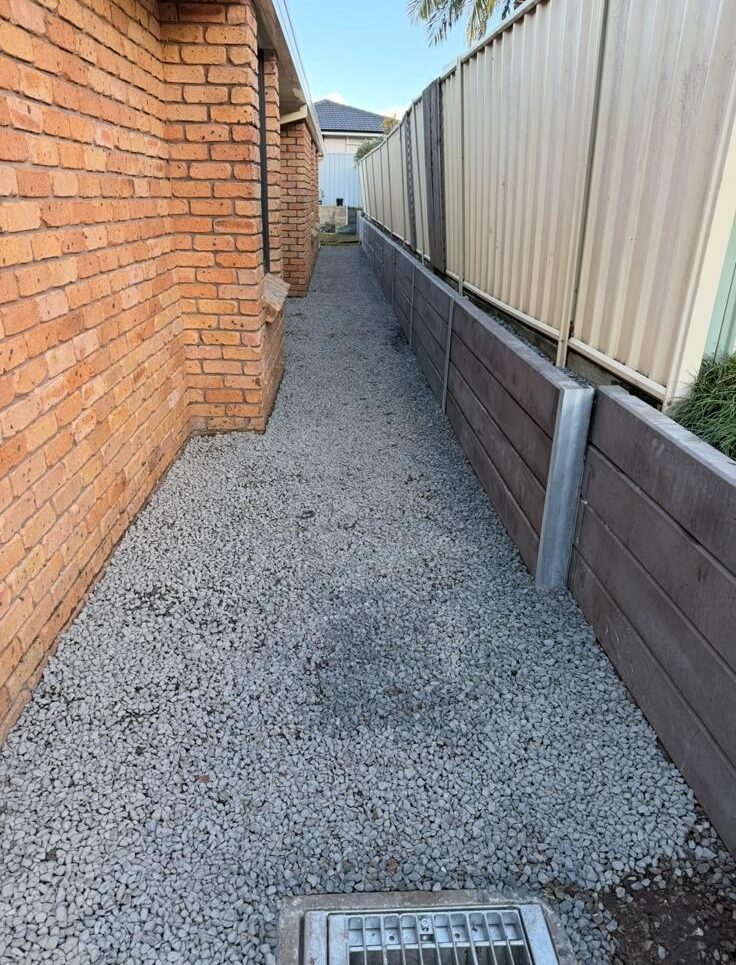

The newly installed drainage system now proficiently captures both surface and subsurface water at the property boundary, ensuring it is diverted away from the house. This solution offers the homeowner a durable, low-maintenance option that protects their foundation, flooring, and the investment made in renovations.
